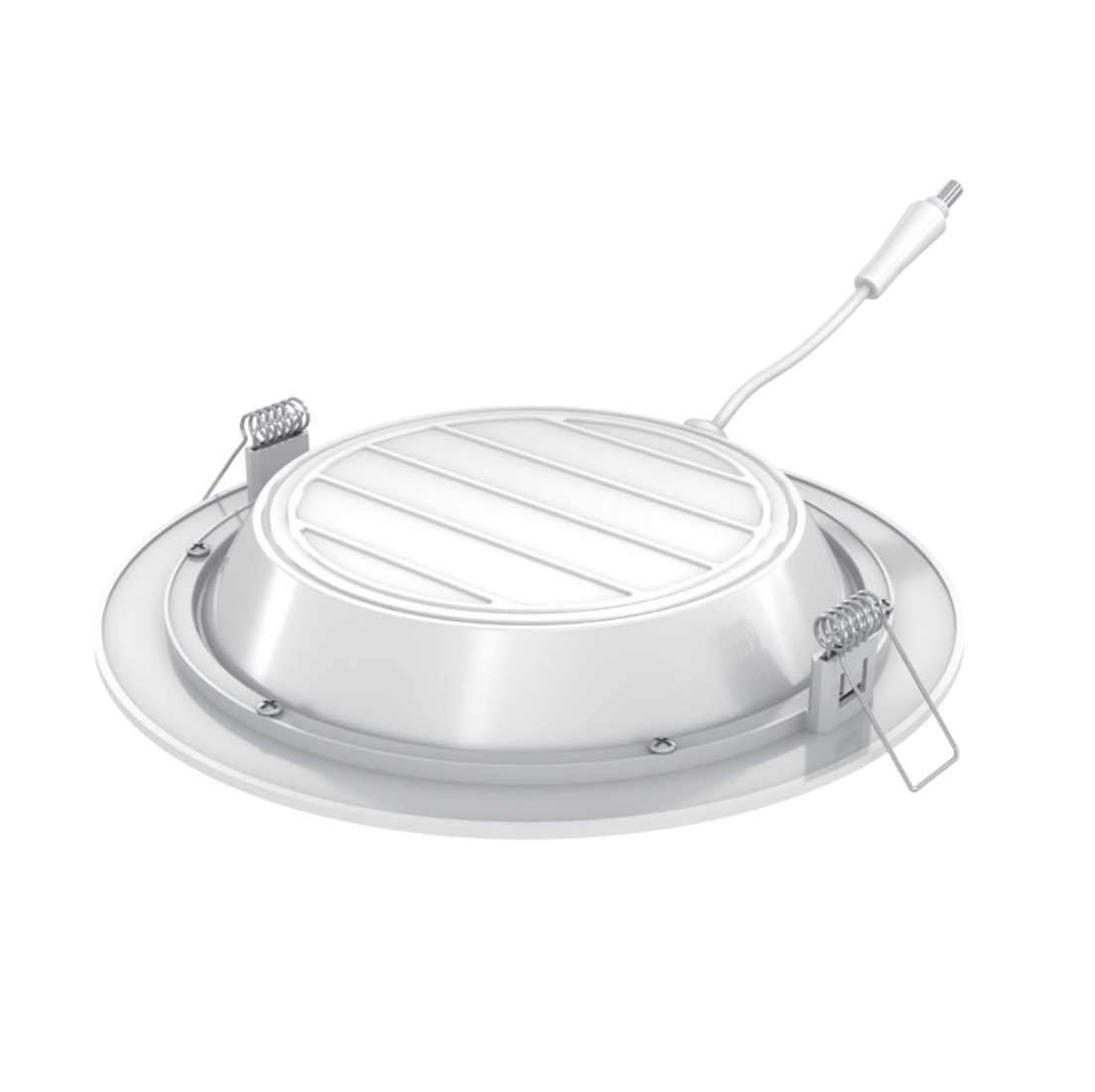

Core

The FlexiSeries Core is a modern, cost-effective recessed LED downlight designed to deliver soft, efficient illumination across a variety of indoor environments, including offices, schools, retail spaces, and transport hubs. With its ultra-slim 26mm profile and round prismatic diffuser, it ensures smooth, comfortable lighting while maintaining a low Unified Glare Rating (UGR<19) for enhanced visual comfort.

Technical Specification

Design: Ultra-slim 26mm round downlight with low-glare prismatic diffuser and white trim finish

Glare Control: UGR<19 for visual comfort in retail, office, education, and commercial environments

Input Voltage: AC 200–240V, 50/60Hz

Colour Temperature: Available in fixed CCT (3000K / 4000K) or optional tri-colour switchable version (3000K / 4000K / 6000K)

Dimming: Configurable with ON/OFF or flicker-free triac dimming drivers

Colour Rendering: Ra>80 with SDCM<5 for stable color consistency

Luminous Efficacy: Up to 105 lm/W using high-efficiency SMD2835 LED technology

Beam Angle: 120° wide distribution for uniform, soft lighting

Dimensions (Standard Sizes):

  • R200 (12W)

  • R240 (18W / 24W)

Installation: Recessed mounting for standard ceiling cutouts; ultra-slim profile suitable for shallow ceiling cavities

Protection Rating: IP20 — suitable for dry indoor environments

Warranty: 5 years on fixture; 3 years on emergency battery (if included)

Emergency Options:

  • Standard: 3-hour emergency function available

  • Compatible: ON/OFF + Emergency configurations

Key Features

Efficient Light Output: Offers up to 105 lm/W with SMD2835 LEDs, delivering reliable brightness with energy savings of up to 60%.

Compact Round Design: Available in standard R200 and R240 sizes to suit common ceiling cutouts and design preferences.

Tri-Colour Flexibility: Optional CCT switchable versions allow users to select between 3000K, 4000K, and 6000K to match ambient lighting needs.

Dimming Options: Supports both standard ON/OFF and flicker-free triac dimming, providing adaptable lighting control for different spaces.

Emergency Functionality: Optional 3-hour emergency backup ensures consistent performance during power interruptions.

Easy Installation: Lightweight construction and recessed mounting design make installation fast and straightforward in both new builds and retrofit projects.
