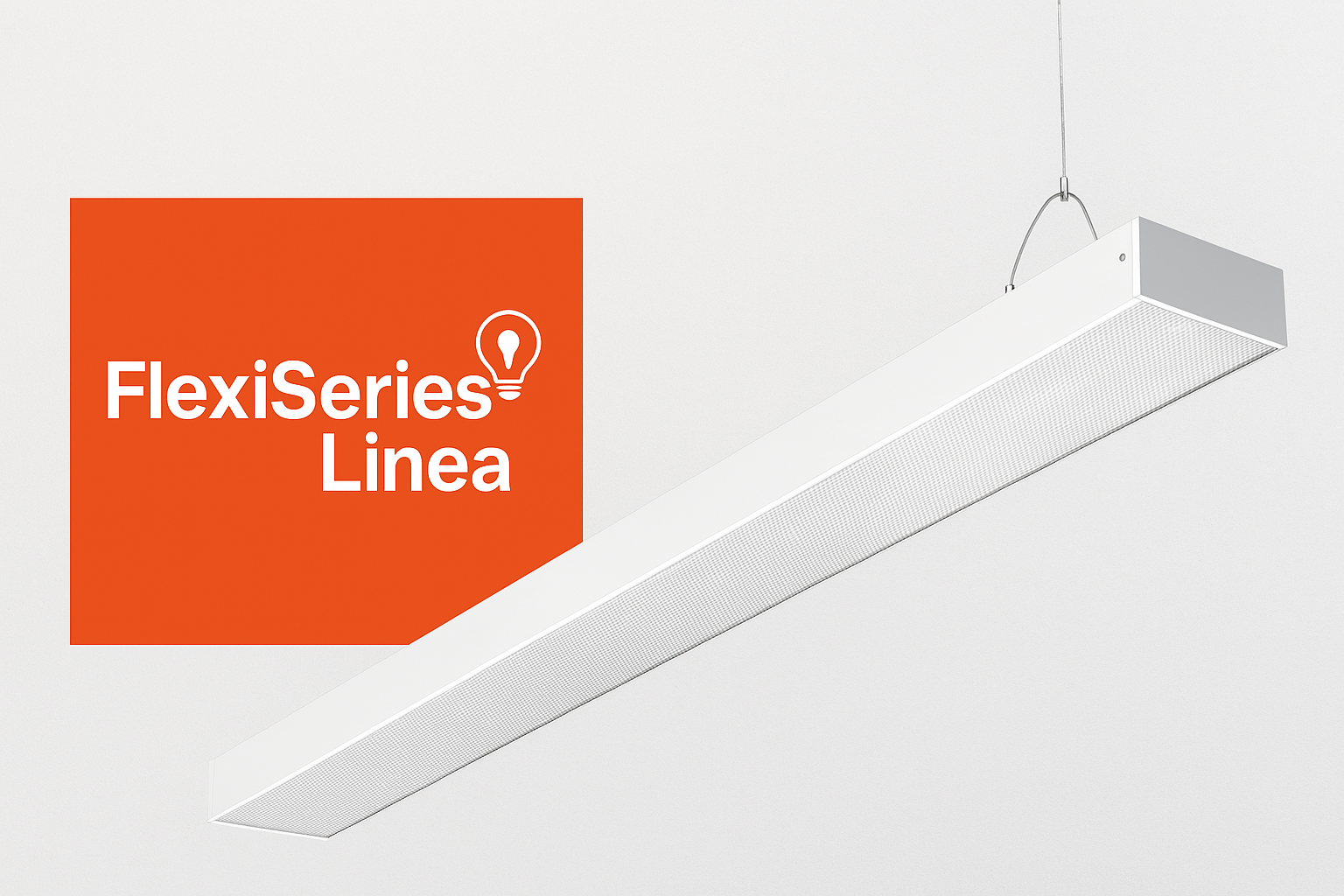

Linea

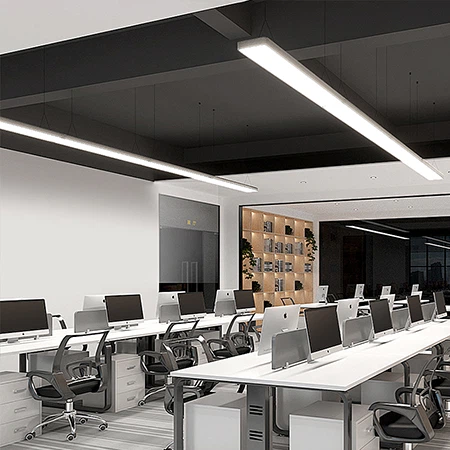

The FlexiSeries Linea is a high-performance linear LED fitting engineered for energy-efficient, low-glare lighting across commercial and educational environments. Designed as a modern replacement for traditional 150mm fluorescent battens, this sleek fixture delivers consistent illumination with an ultra-low UGR<19 rating, making it ideal for classrooms, offices, conference rooms, and retail settings.

With an energy efficiency of up to 120 lm/W and a lifetime rating of 50,000 hours (L80/B10), the FlexiSeries Linea provides reliable, high-quality illumination. It also comes backed by a 5-year warranty, ensuring long-term peace of mind for professional installations.

Key Features

Performance & Lighting Quality

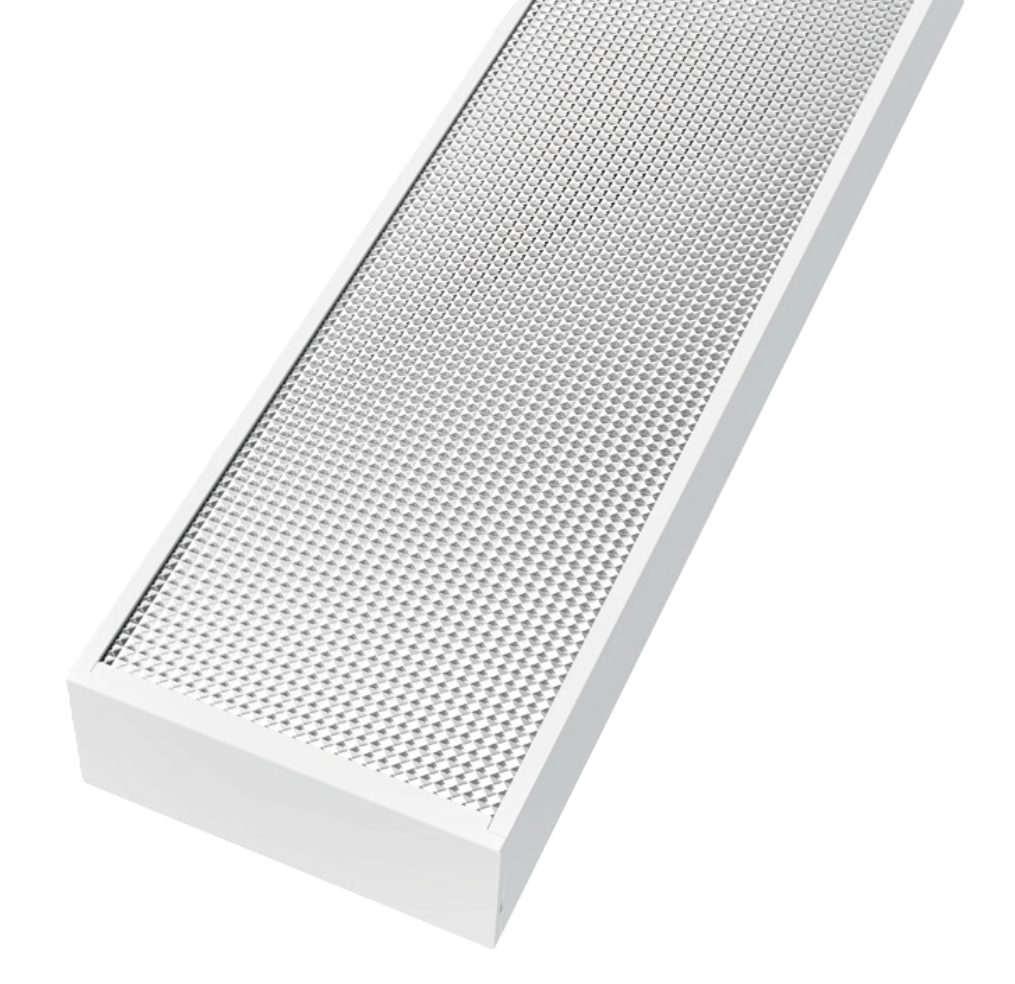

  • UGR <19 with prismatic diffuser – ensures glare-free, comfortable illumination.

  • High colour rendering: Available in Ra80 or Ra90 with SDCM <3 for excellent colour consistency.

  • Luminous efficacy: 110–120 lm/W typical efficiency.

  • Luminous flux: Approximately 4000 lm (35W model).

  • Beam angle: 90° for even light distribution.

  • Colour temperature: 4000K neutral white (other options available).

Functionality & Control Options

  • Selectable power and CCT switch on the LED driver for flexible configuration.

  • Multiple function options, configurable by model:

    • F1: ON/OFF

    • F2: DALI dimming

    • F3: Motion sensor

    • F4: Emergency

    • F5: DALI Dimming + Emergency

    • F6: DALI Dimming + Motion Sensor

    • F7: ON/OFF + Motion Sensor + Emergency

  • Optional uplight at constant 2×4W for enhanced ceiling illumination.

Construction & Installation

  • Surface mount or suspension installation options.

  • End or rear besa cable entry for flexible wiring.

  • SPCC housing with durable finish.

  • Operating temperature: –20°C to +45°C.

  • Protection class: IP20 – suitable for indoor use.

Electrical & Reliability

  • Input voltage: AC200–240V / 50Hz.

  • Power factor: >0.95; Efficiency: >93%.

  • THD: <20%.

  • Lumen maintenance: ≥80% at end of life (L80B10 @ 50,000 hrs).

  • Switching cycles: >100,000.

  • 5-year warranty.

Dimensions & Packaging

  • Size: 1506 × 120 × 60 mm (L×W×H).

  • Net weight per unit: 2.28 kg.

  • Packaged 4 units per carton, with inner and outer protective boxes

Safety & Compliance

  • Certified to TÜV, GS, SAA, CE, RoHS, and UKCA standards.

  • Must be installed by a qualified electrician in accordance with building regulations.
