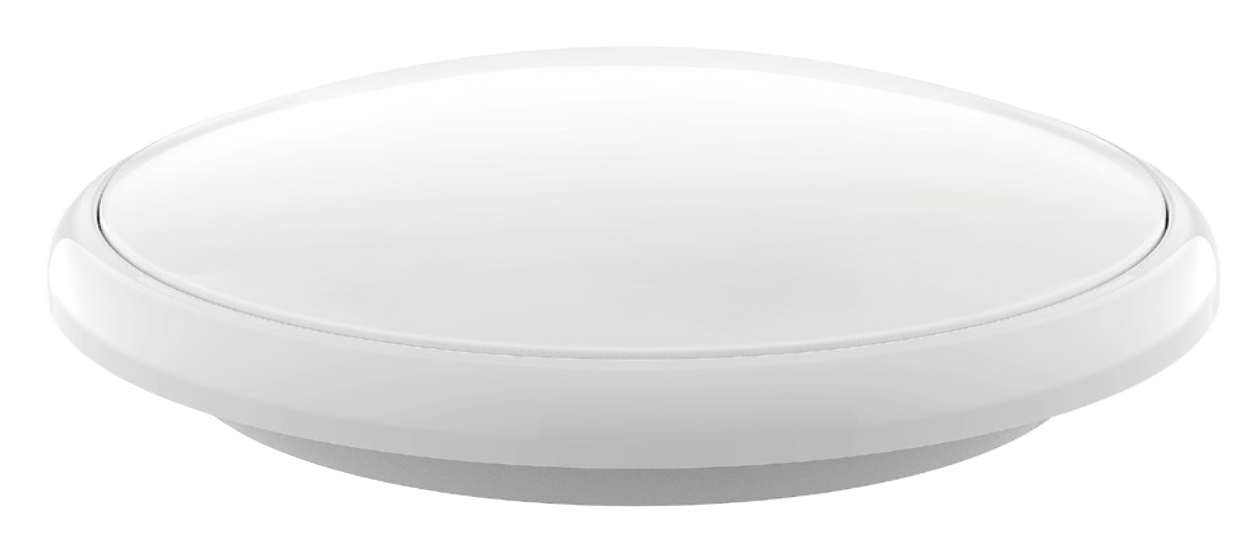

Orbit

The FlexiSeries Orbit is a durable, IP65-rated LED bulkhead fitting designed for reliable, energy-efficient illumination in both indoor and semi-outdoor environments. Ideal for stairwells, corridors, residential areas, and architectural applications, it combines functional design with robust performance to replace traditional 2D fluorescent fixtures with ease

Key Features

High Performance Output: Delivers up to 135 lm/W using SMD2835 LEDs, offering bright, uniform lighting while reducing energy consumption by up to 60%.

Rugged Circular Design: Engineered with an impact-resistant (IK08) housing and sleek Ø435mm form factor, perfect for high-traffic and public areas.

Smart Functionality: Multiple configurations available, including ON/OFF, Microwave Sensor (MS), Emergency (EM), and self-test emergency combinations.

Emergency Ready: Optional 3-hour emergency function at 10% output ensures visibility and safety during power interruptions.

Sensor Integration: Built-in microwave sensor options with corridor function for motion-activated energy savings and safety.

Customizable Aesthetics: Interchangeable bezels available for different visual styles and applications.

Reliable Protection: IP65-rated against dust and water ingress, making it suitable for damp or external-facing areas.

The FlexiSeries Orbit offers long-lasting, dependable lighting performance backed by a 5-year warranty and 3-year coverage on the emergency battery. With a wide 120° beam angle, flicker-free output, and versatile mounting options, it’s a practical and professional solution for projects demanding robust, high-efficiency lighting in challenging conditions

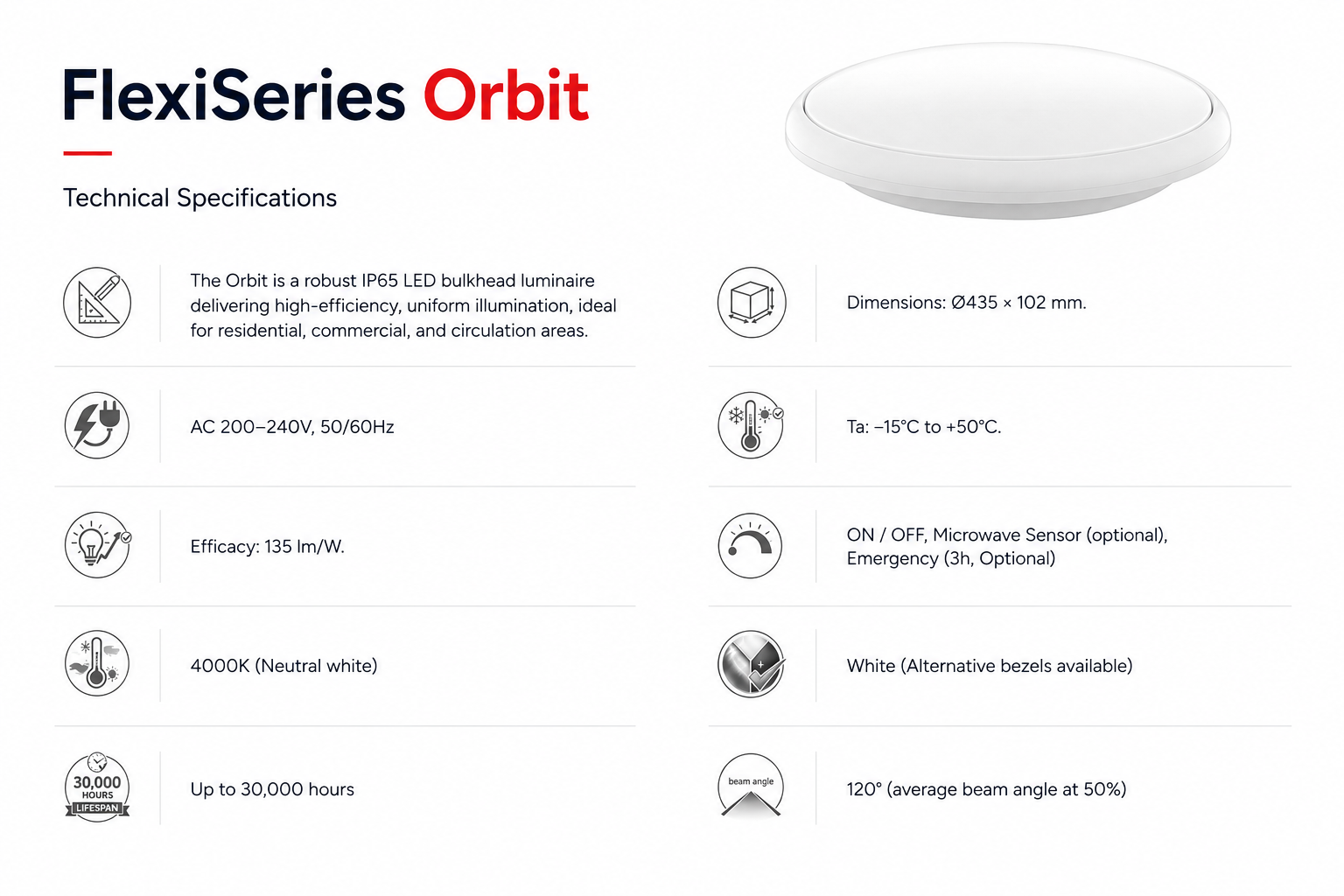

Technical Specification

Design: Circular IP65-rated bulkhead with durable polycarbonate housing and opal diffuser for uniform light distribution

Protection & Durability: IP65 and IK08 rated for resistance to dust, water, and impact—ideal for both indoor and semi-outdoor use

Input Voltage: AC 200–240V, 50/60Hz

Colour Temperature: Available in fixed 4000K or custom configurations with CCT selectable (via internal DIP switch)

Dimming: Available in standard ON/OFF models; optional versions with integrated microwave sensor for motion-activated control

Colour Rendering: Ra>80 with SDCM<3 for excellent colour consistency

Luminous Efficacy: Up to 135 lm/W using high-efficiency SMD2835 LED chips

Beam Angle: 120° wide distribution for general illumination without glare

Dimensions (Standard Size):

  • Ø435mm (20W)

Installation: Surface-mounted with secure locking mechanism and optional bezels for aesthetic variation

Protection Rating: IP65 / IK08 — suitable for outdoor corridors, stairwells, and architectural lighting

Warranty: 5 years on fixture; 3 years on emergency battery (if included)

Emergency Options:

  • Standard: 3-hour emergency operation at 10% lumen output

  • Advanced: Options include EM + Microwave Sensor or Self-Test EM combinations
